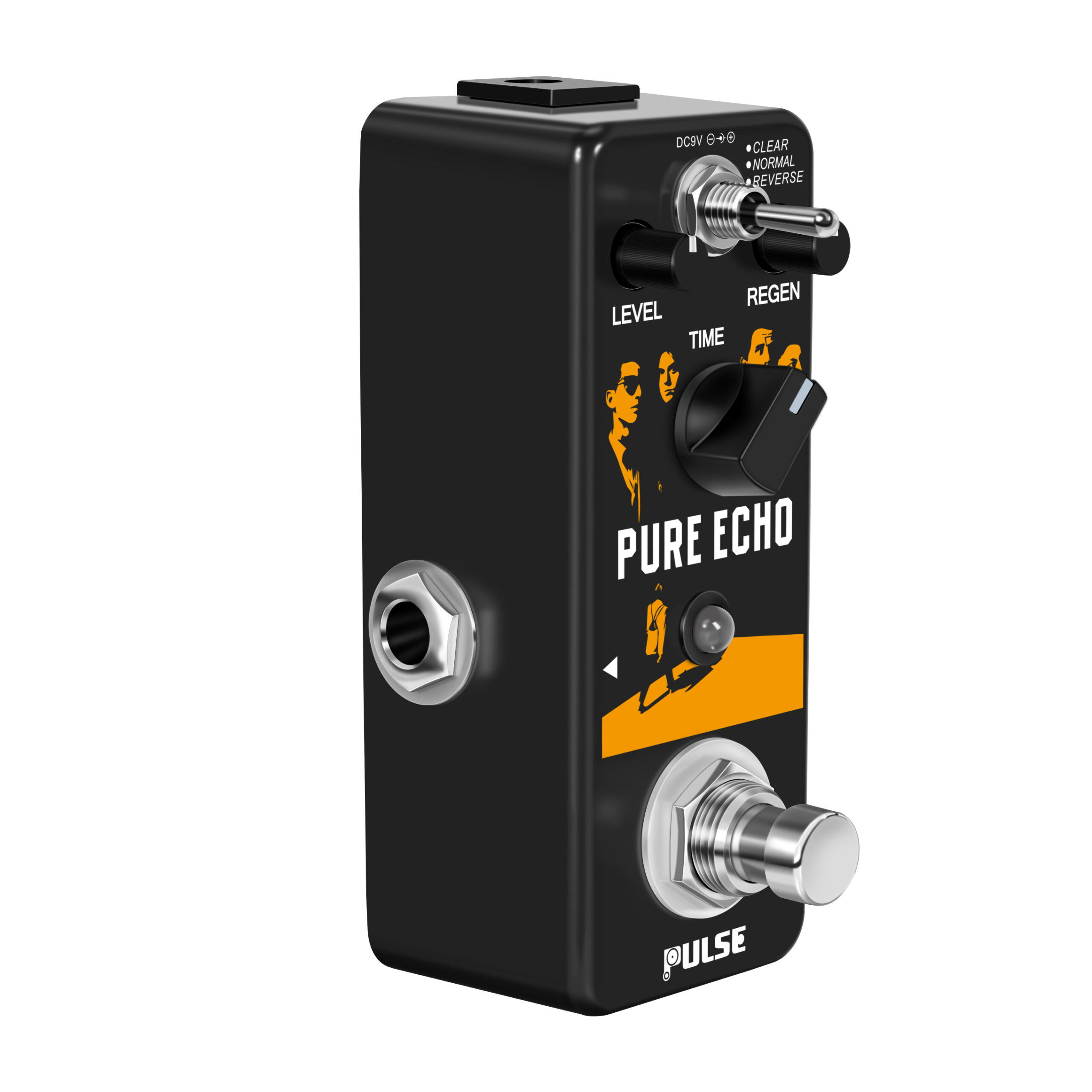

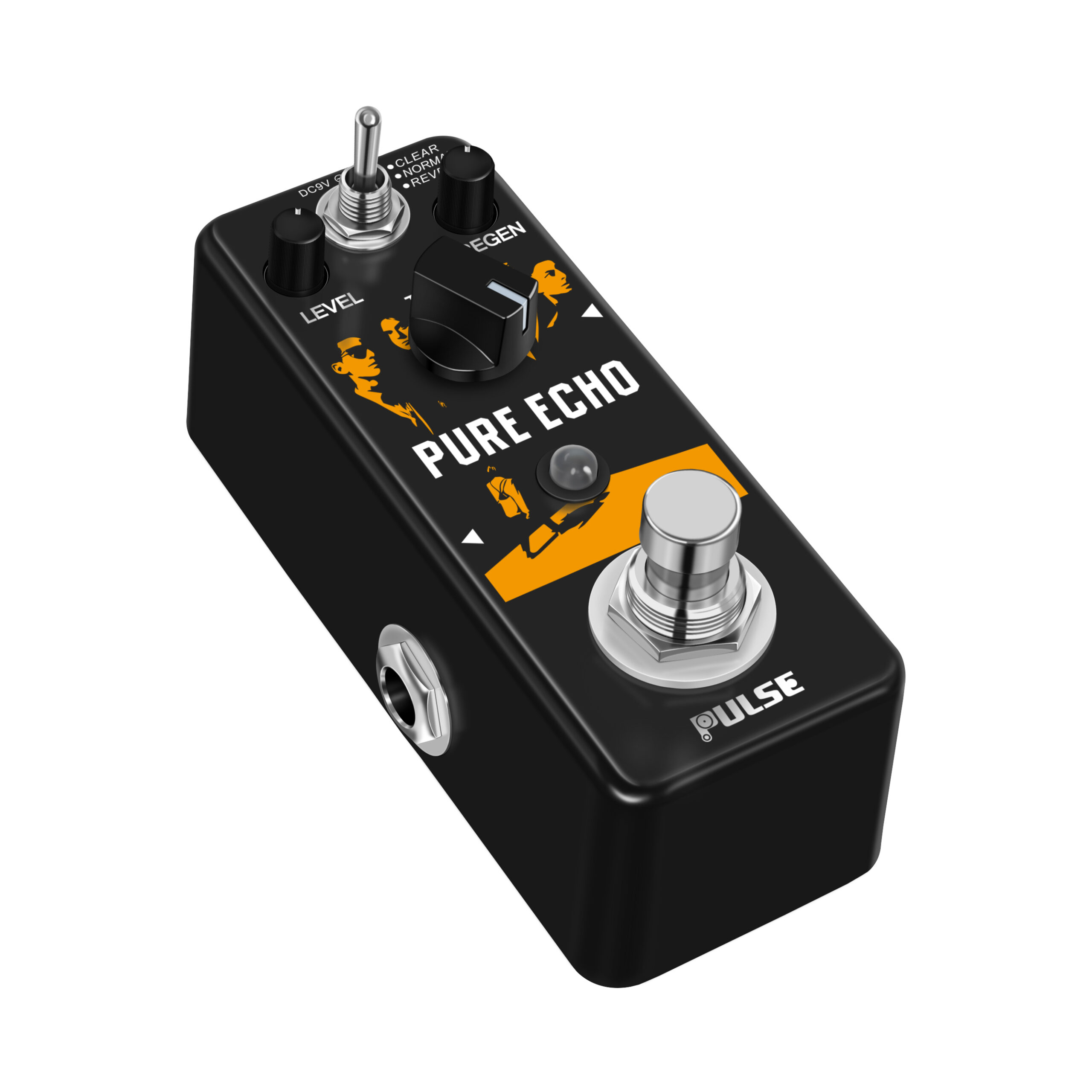

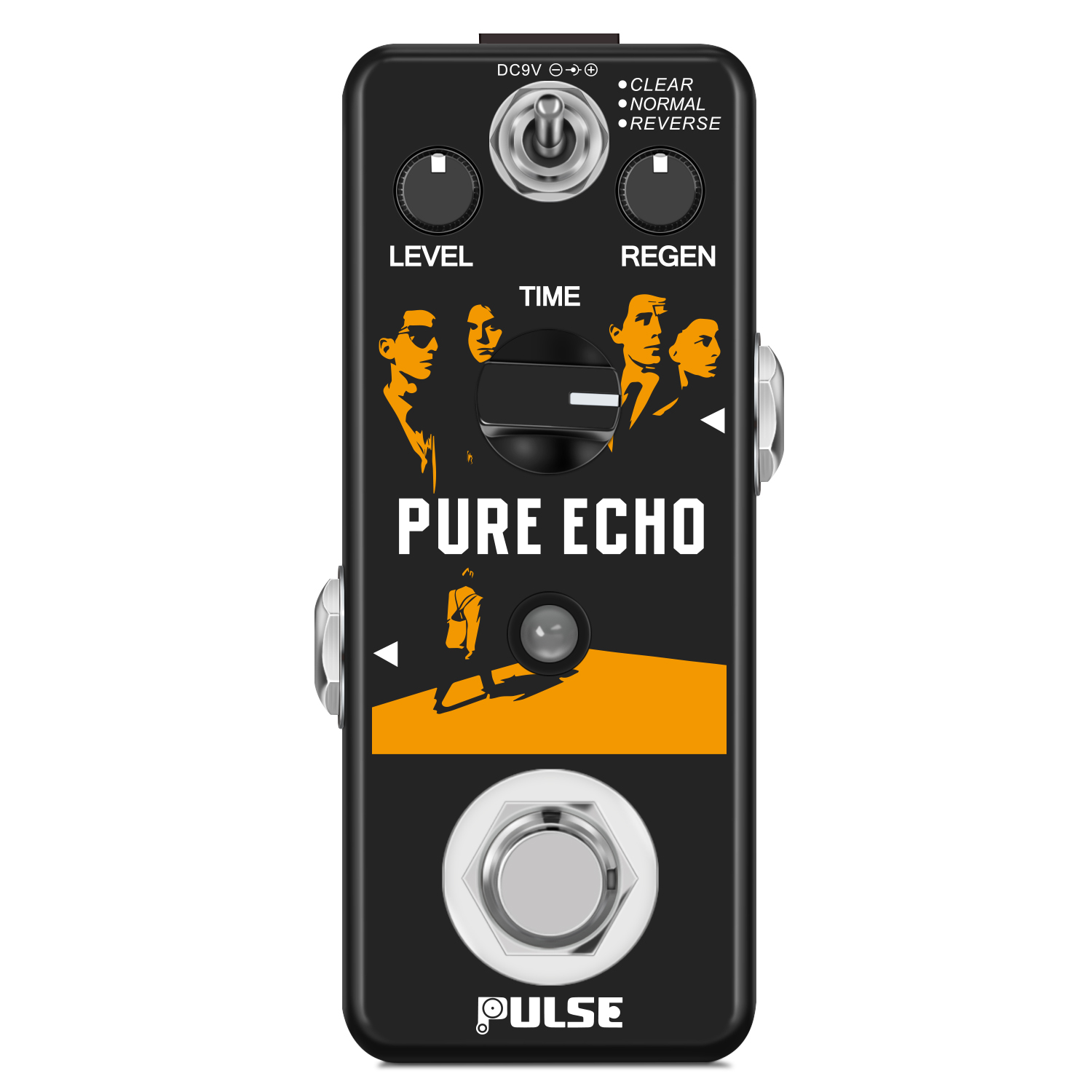

Pulse Technology Pure Echo PT-83 Mini Guitar Delay Effect Pedal
Pulse Technology PURE ECHO PT-83
The Pulse PT-83 Pure Echo pedal supplies several variations on the classic echo effect for guitar. With three separate settings, including the famous reverse echo, this pedal is suitable for 50’s style rock, right through to psych sounds of the 70’s.
Pulse PT-83 Pure Echo Guitar Effect Pedal
The PT-83 Pure Echo pedal supplies several variations on the classic echo style effect for guitar. With three seperate settings, including the famous reverse echo effect pioneered by Jimmy Page, this pedal provides echo’s that are suitable for 50’s style rock, right through to the more psych sounds of the late 60’s and 70’s. Using a combination of the Level and Regen controls, the guitartist is ultimately in control of shaping the selected echo effect into the desired sound.
Compact / Miniature Case Size
Advances in circuitry design have made is possible for guitar effect pedals to be built in compact enclosures that literally fit in the palm of the hand. The mini design allows more pedals to fit on a pedalboard and helps reduce the overall weight, making them an ideal solution for the traveling guitarist.
Store Function with Soft Touch Switching
Pulse digital effects pedals feature a built-in store function, to quickly save and recall any configuration of effects you create. Hold down the soft touch switch to save a setting, and double tap the switch to recall. Green and red LED indicator lights determine the currently selected channel, and flash to clearly show when a setting is saved. Recall presets even after the pedal is switched off an unplugged.
True Bypass Circuitry
The compact inner circuitry is designed with a 3PDT true bypass switch ensuring an unaltered tone when the pedal is not engaged. A true bypass switch has the ability perform a true bypass of the internal hardware circuit of the pedal, meaning the signal goes straight from the IN to the OUT.
Features and Specifications:
Zinc Alloy Shell
Multiple Effects: Phaser, Vibe and Chorus
3 type Reverb Toggle Switch Selector
Reverb, Decay, Tone controls
Dual Mode: Fixed and Normal
DSP: 32bit Floating point
Sampling: 44.1 kHz/24bit
Fixed Reverb Time: 6ms
True Bypass 3DPT Switch
Power Supply: 9V DC (Negative Centre) – (Not Included)
Current Draw: 100mA
Input Impedance: 470K Ohms
Output Impedance: 100 Ohms
Dimensions: L95mm x W44mm x H53mm (incl. switch)
Weight: 0.2kg (205grams)
1 * User Manual(English)
Takes 9v DC adapter (not included)
This pedal can NOT be powered by batteries. It needs a DC 9V 100ma power supply negative center to power up.
Power supply not included.
Please use a 9V DC power adapter whose polarity is negative center otherwise, the product may not work properly.
- Package List:
1 * Effect Pedal1 * User Manual ( English )
