Description

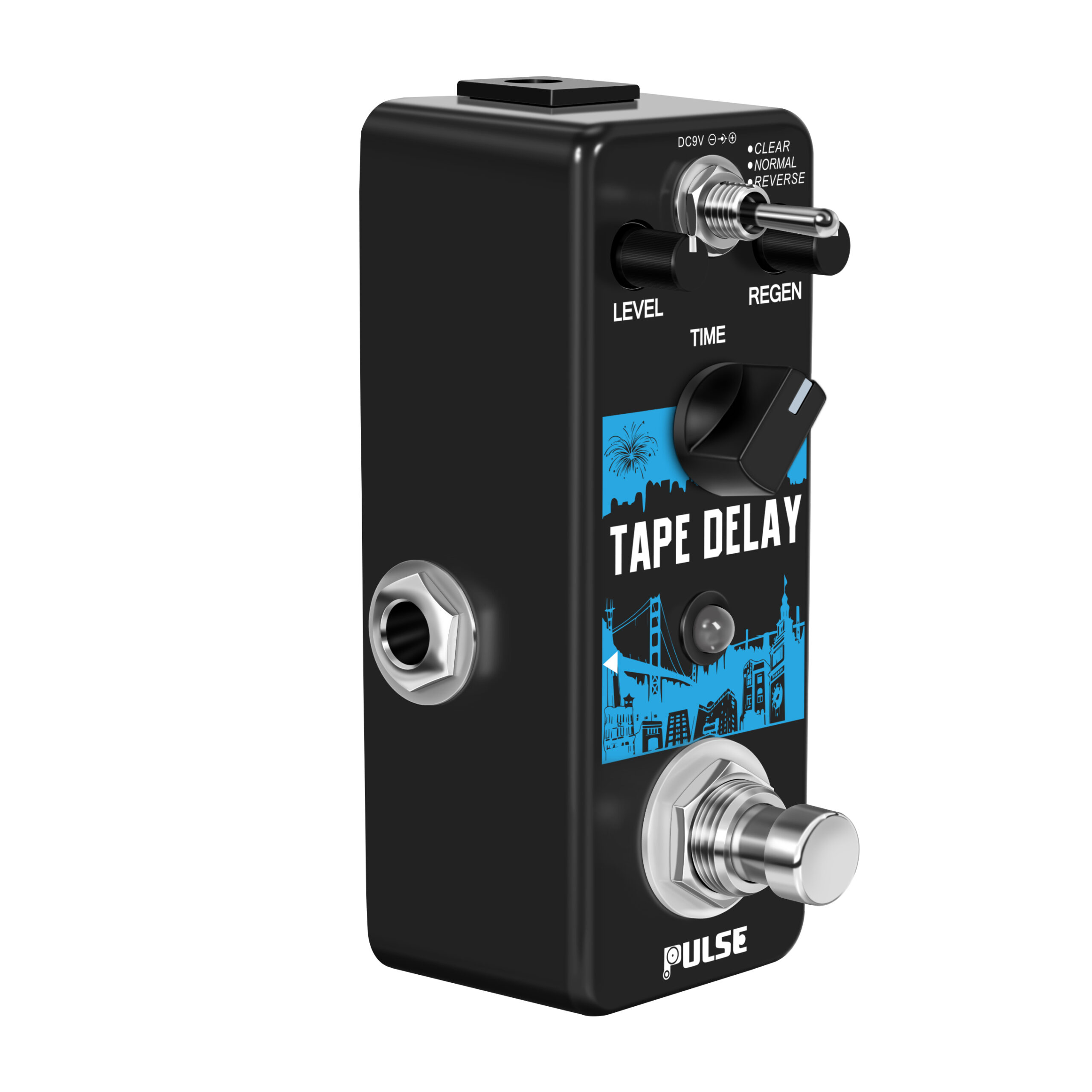

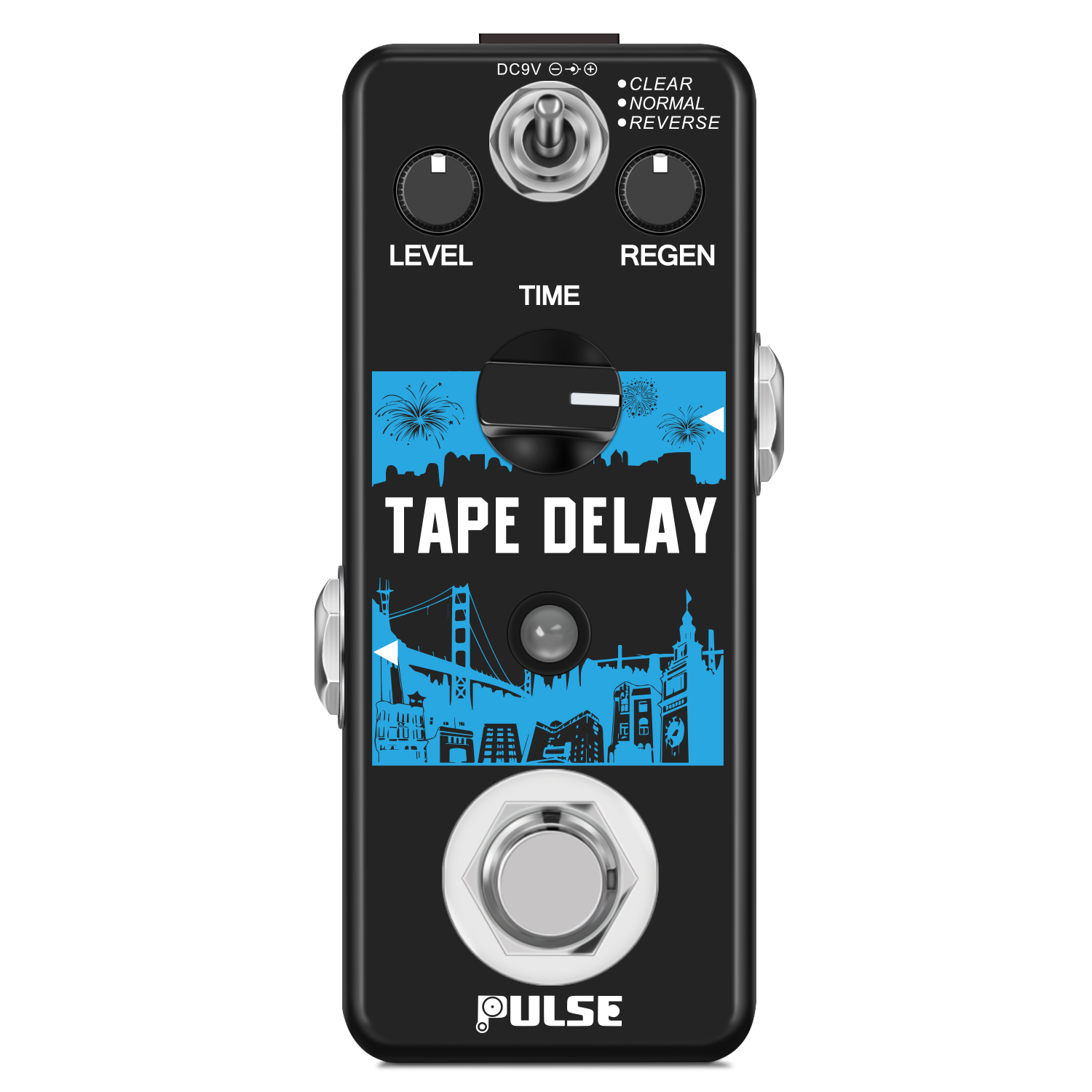

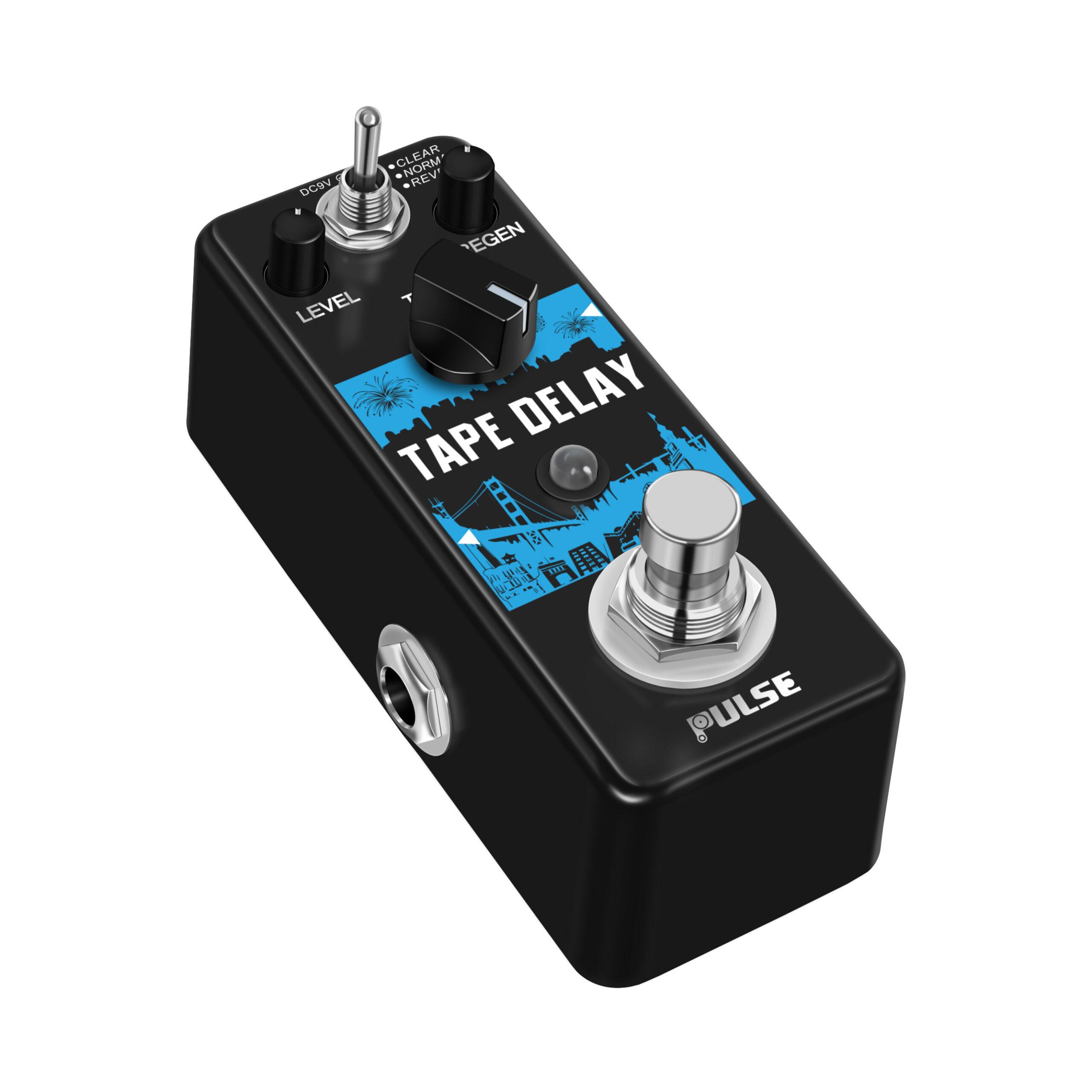

Pulse Technology Tape Delay PT-89 Mini Digital Guitar Delay Effect Pedal
Pulse Technology TAPE DELAY PT-89
The Pulse PT-89 pedal is compact and convenient for any gig where you require that tape warbling delay sound. It has a simple layout with two jack inputs either side so you can just plug in and play. The Tape Echo pedal is constructed entirely out of zinc alloy which gives this small pedal a robust chassis to withstand your onstage stomping.
CONTROLS
Like many delay pedals, the Pulse Tape Delay has a conventional layout with simple controls that are set out in a way that makes it easy for any guitarist to assemble. To control the overall volume of the delays there is a Level dial which you can then partner with the Regen dial which controls the number of repeats you hear. With these two controls you then just have to choose your speed level using the Time dial, and once this is set you’re ready to play.
Level dial controls the overall volume of the delays.
Regen dial allows you to set the number of repeats you will hear.
Time dial in the middle allows you to set the speed.
Above the three dials is a three-way toggle switch which you can alternate between Clear, Normal and Reverse tones.
Clear offers a digital signal which almost has a church hall reverberation.
Normal offers a similar tone to that of a regular tape machine while Reverse does the opposite whereby each note becomes a little more detached from one another.
By adjusting the Regen dial and changing between the three modes available you can experiment with a wide range of interesting and varying tones.
The LED indicator light is bright which is ideal for a dark stage, and a true bypass foot-switch sits at the bottom of the pedal for you to engage with it.
Specifications:
Brand: Pulse Technology
Model: PT-89
Material: Zinc Alloy
Power Supply: AC adapter 9V DC (Adapter not included)
Item Size: 3.7 * 1.5 * 2in
Item Weight: 8.8oz
【Amazing Tone】 – This incredible pedal has a warm and full tone, and perfectly embodies the original tone you create. From simple dry sounds to fully advanced echo tones, you will be able to mimic those classic tones of the 60’s or inspire your own new music.
【Classic Design】 – Mini SIZE, BIG SOUND. Compact design makes it easy to carry anywhere. – Solid case is made of high-quality zinc alloy, stable and strong.
【Easy Use】 – Three knobs for you to dial in that perfect tone，each knob gives you a wide control range. – Heavy Duty Metal Footswitch and LED light shows the working status.
【Power Supply】 – Please make sure your pedal is connected to an DC adapter with 9V voltage(NOT INCLUDED). Unplug the DC adapter when not using the product or during the thunder storm.
Compact / Miniature Case Size
Advances in circuitry design have made it possible for guitar effect pedals to be built in compact enclosures that literally fit in the palm of the hand. The mini design allows more pedals to fit on a pedal-board and helps reduce the overall weight, making them an ideal solution for the traveling guitarist.
Store Function with Soft Touch Switching
Pulse digital effects pedals feature a built-in store function, to quickly save and recall any configuration of effects you create. Hold down the soft touch switch to save a setting, and double tap the switch to recall. Green and red LED indicator lights determine the currently selected channel, and flash to clearly show when a setting is saved. Recall presets even after the pedal is switched off an unplugged.
True Bypass Circuitry
The compact inner circuitry is designed with a 3PDT true bypass switch ensuring an unaltered tone when the pedal is not engaged. A true bypass switch has the ability perform a true bypass of the internal hardware circuit of the pedal, meaning the signal goes straight from the IN to the OUT.
Features and Specifications:
-
Store Parameters
-
Zinc Alloy Shell
-
Multiple Effects: Phaser, Vibe and Chorus
-
3 type Reverb Toggle Switch Selector
-
Reverb, Decay, Tone controls
-
Dual Mode: Fixed and Normal
-
DSP: 32bit Floating point
-
Sampling: 44.1 kHz/24bit
-
Fixed Reverb Time: 6ms
-
True Bypass 3DPT Switch
-
Power Supply: 9V DC (Negative Centre) – (Not Included)
-
Current Draw: 100mA
-
Input Impedance: 470K Ohms
-
Output Impedance: 100 Ohms
-
Dimensions: L95mm x W44mm x H53mm (incl. switch)
-
Weight: 0.2kg (205grams)
1 * User Manual(English)
Takes 9v DC adapter (not included)
This pedal can NOT be powered by batteries. It needs a DC 9V 100ma power supply negative center to power up.
- Note:
Power supply not included.
Please use a 9V DC power adapter whose polarity is negative center otherwise, the product may not work properly. - Package List:
1 * Effect Pedal1 * User Manual ( English ) - 1 * Hardcover Box
- 1 * Year warranty through our store
