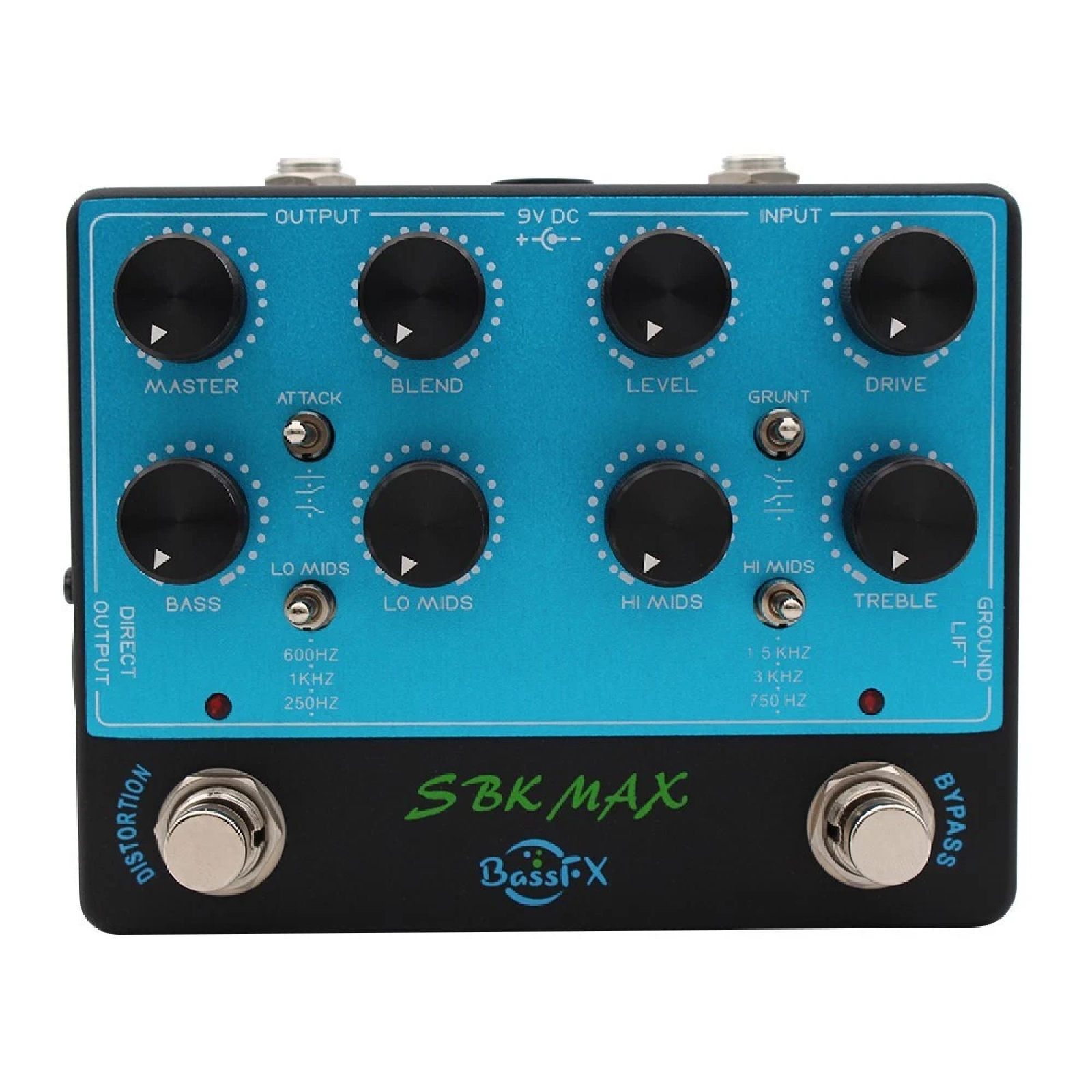

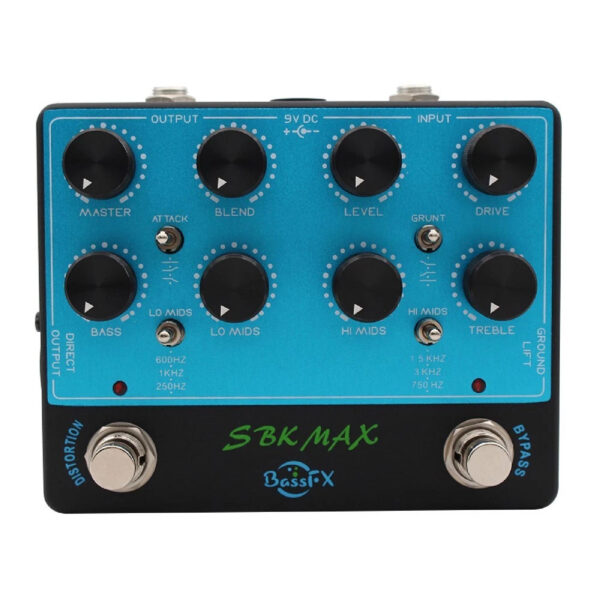

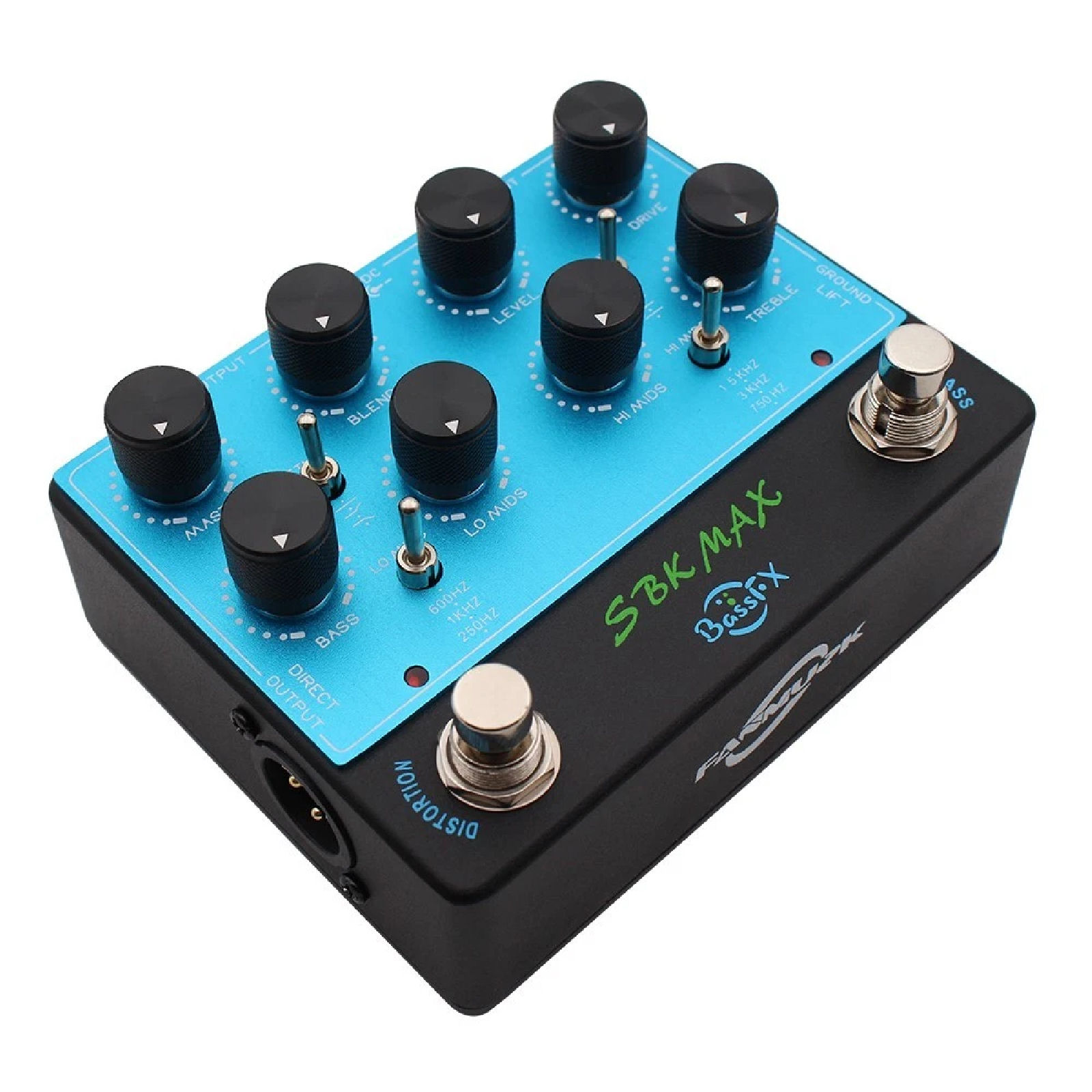

Fanmuzk SBK MAX Preamp Pedal Bass Distortion 4-band EQ Speaker Cabinet Emulation True Bypass Designed by DemonFx

Fanmuzk SBK MAX Preamp Bass Effect Pedal Distortion 4-band EQ Speaker Cabinet Emulation DI Output

The pedal features all the versatility and sonic possibilities its predecessor is known for plus amazing features: A dedicated Footswitch to engage the overdrive section independently. A Master volume to control the overall unit level. Three way toggle switches for each mid control, with a total of 6 different mid frequencies at your disposal the pedal allows you to create and tailor your tone to perfection: From crisp, punchy clean preamp to obliterating high gain distortion, and everything in between. The pedal is an universal tone crafting machine.

Boutique hybrid JFET & CMOS gain stages overdrive

4 bands EQ

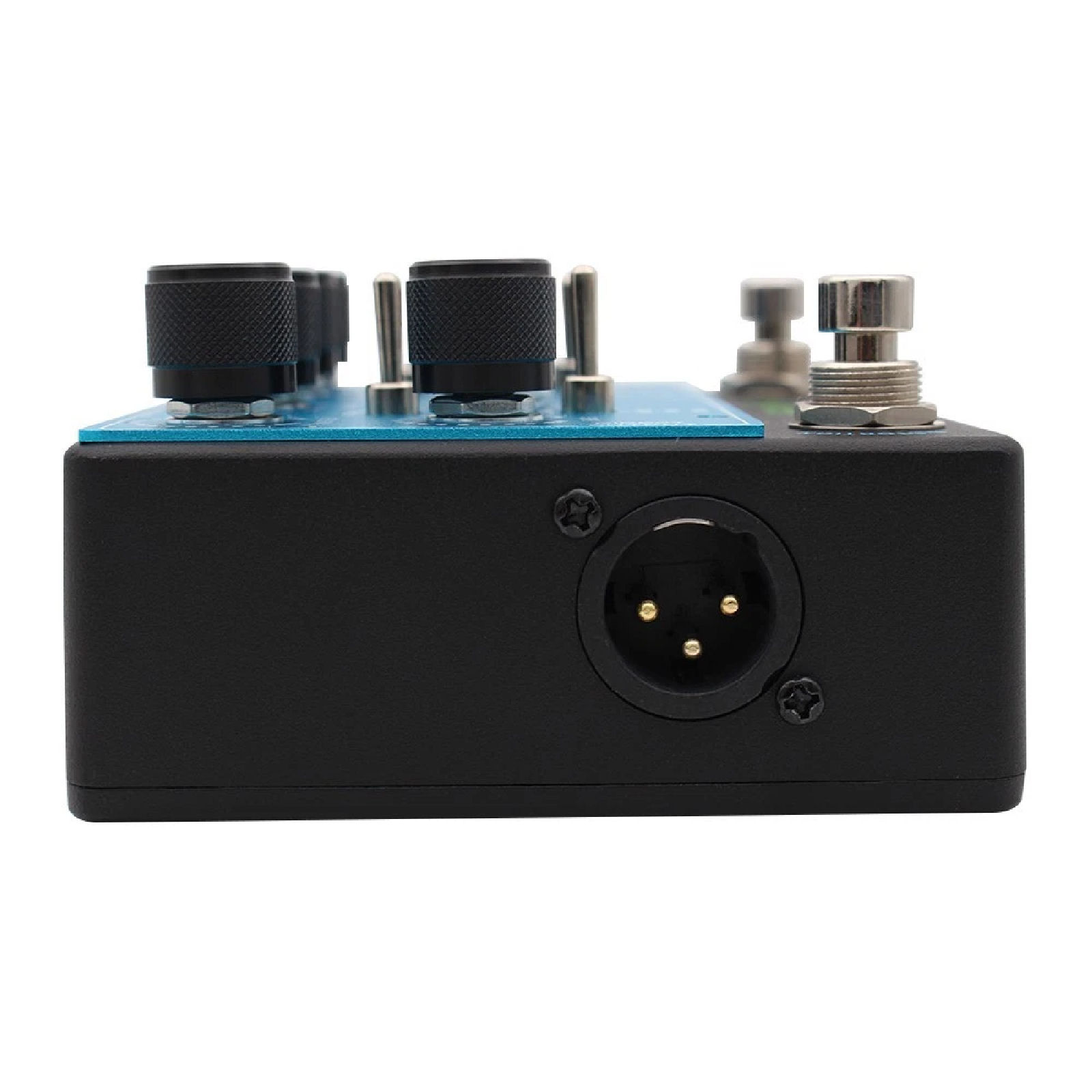

XLR balanced line out

lift/ground switch

New Distortion footswitch

New Master Volume

New 3 positions toggle switch for Mid Freq Range

Master: Whereas the Level Knob controls the output of the overdrive section the Master volume adjusts the overall volume of the unit. Ideal for fine tuning the output on clean mode. It also serves as a DI level control.

Blend: Mixes the clean input signal with the overdriven signal. The clean signal remains at unity gain while the volume of the overdriven signal is set by the Level knob, allowing for fine control of the blend ratio.

Level: Sets the volume of the overdriven signal.

Drive: Sets the amount of saturation in the overdriven signal.

Attack Switch: Sets the amount of treble content to saturate: The “Boost” setting emphasizes the treble content extra clarity and presence. The “Flat” position leaves this register untouched while the “Cut” position will reduce the amount of high frequencies being saturated.

Grunt Switch: Sets the amount of low frequency content to saturate by selecting between three different bass boost levels before the clipping stage.

Bass: +-12dB @ 100Hz

Lo Mids: +-12dB switchable 250Hz, 500Hz and 1kHz

Hi Mids: +-12dB switchable 750Hz, 1.5KHz and 3kHz

Treble: +-12dB @ 5kHz.

Every effect pedal has been tested carefully before delivery, it’ll never let you down.

Input Impedance: 1MΩ

Output Impedance: 1kΩ

•    Dimensions (W/D/H): 120 mm X 95mm X 50mm

•    Weight: 0.6 lbs. (490g)

•    Power Consumption: 9VDC/120 mA

•   AC Adapter : 9VDC,  (not included)

Note: Power Adapter is not included.

Please use the quality standard 9V effects power adapter whose polarity is negative center, otherwise, the product may not work properly.

The power source is important. Please use a quality power source or brand power adapter. Poor power adapter will make effects noises.

Note:
Power supply not included.
Please use a 9V DC power adapter whose polarity is negative center otherwise, the product may not work properly.

Package List:
1 * Effect Pedal
1 * User Manual ( English )
1 * Year warranty through our store

Package List:

• 1 * Effect Pedal
  1 * User Manual ( English )
• 1 * Hardcover Box

• 1 * Year warranty through our store
