Pulse Technology B-Qualizer PT-17B Mini Bass Guitar 5-Band Graphic Equalizer EQ Pedal
Pulse Technology B-QUALIZER PT-17B

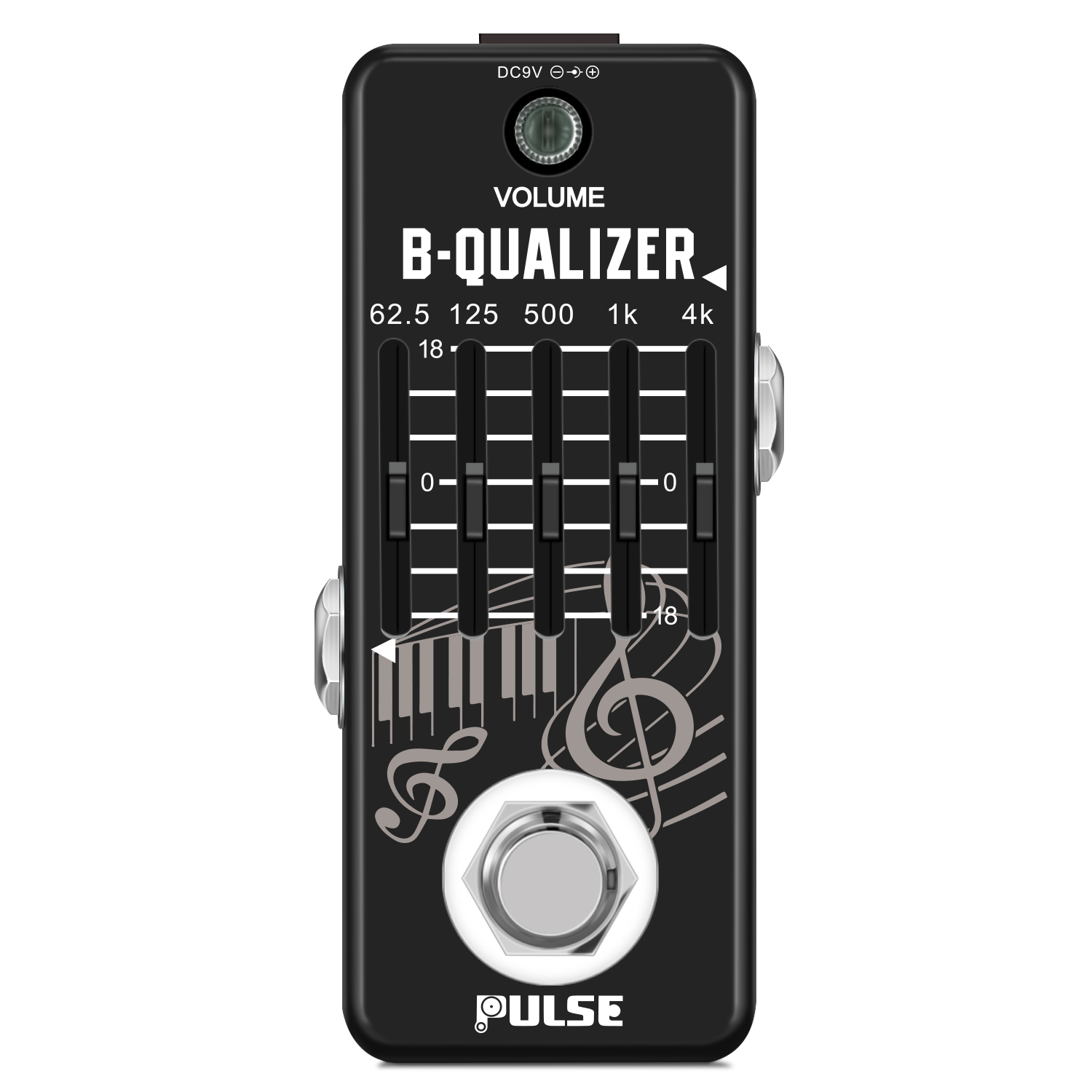

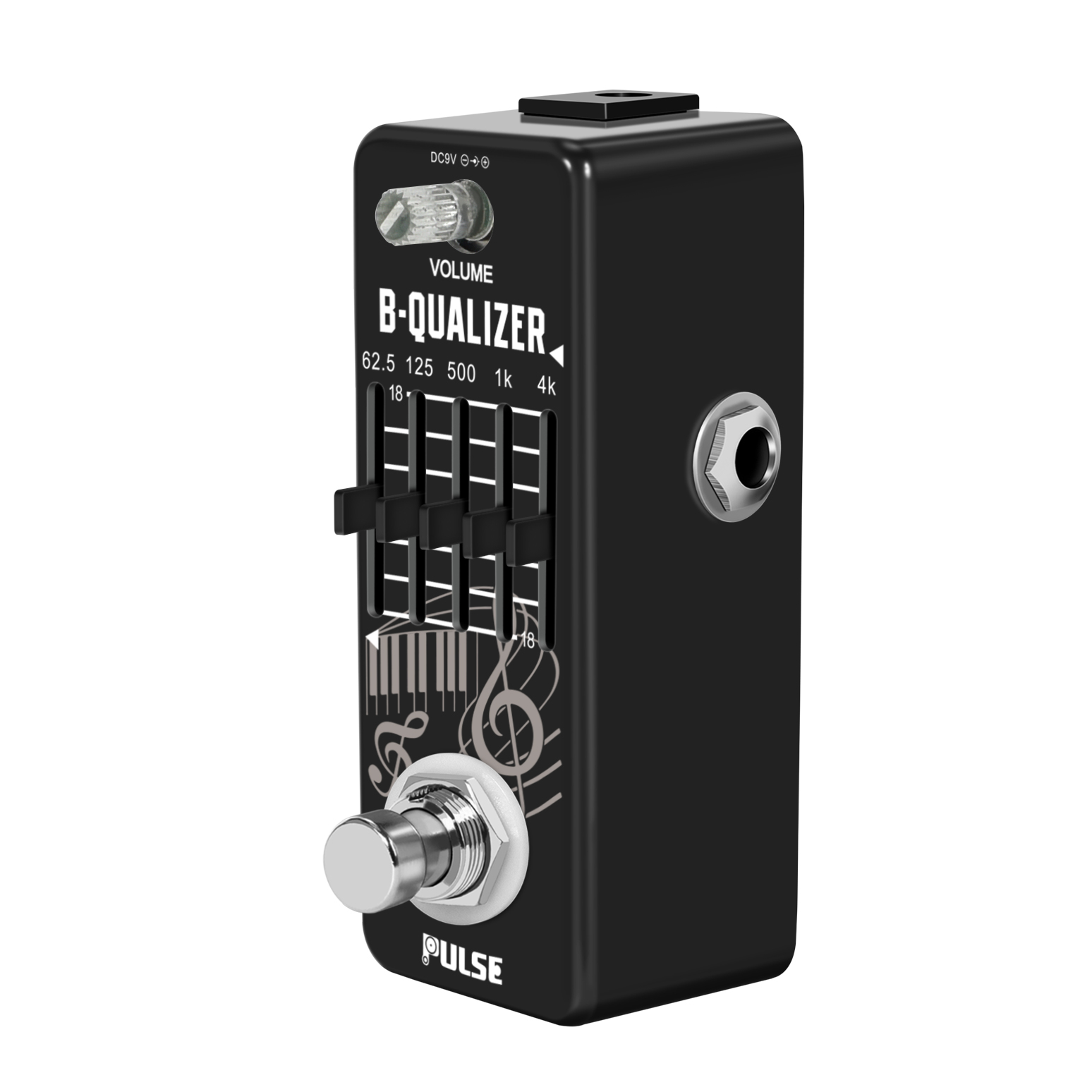

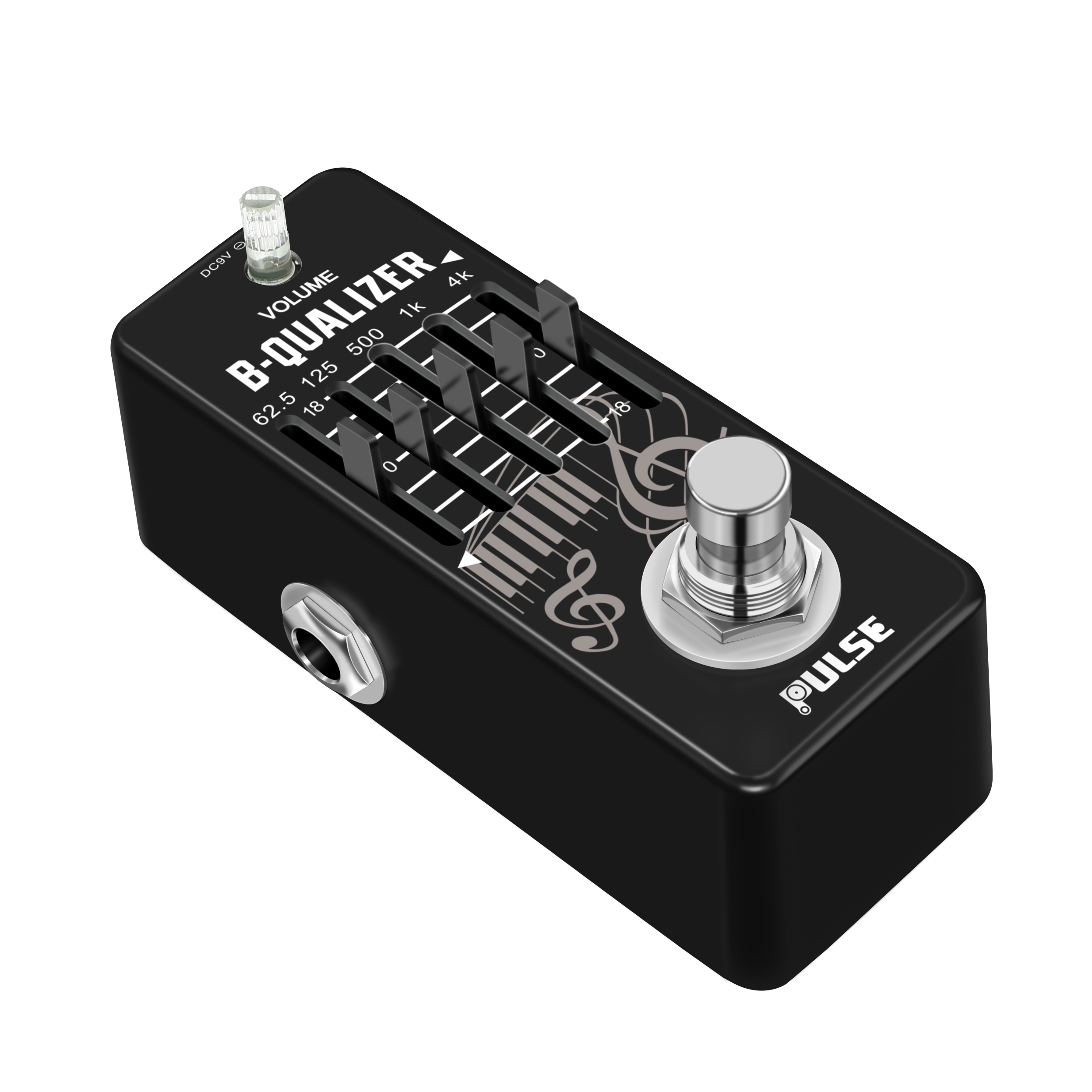

The Pulse PT-17B Mini Bass Guitar 5-Band Graphic Equalizer Pedal
The Pulse Graphic EQ Pedal PT-17B is designed for the bass player. It features five adjustable frequency faders that can be used to shape and sculpt your instrument sound to perfection. With 18dB of gain or attenuation ranging from 62.5Hz-4kHz, this pedal can be used to cut problem frequencies, add warmth or sparkle, and create those fat bass tones.
Compact / Miniature Case Size
This is the smallest bass guitar EQ pedal in the world. Advances in circuitry design have made is possible for guitar effect pedals to be built in a compact enclosures that literally fit in the palm of your hand. The mini design allows more pedals to fit on your pedal board and also helps reduce the overall weight.
True Bypass Circuitry
The compact inner circuitry is designed with a 3PDT true bypass switch ensuring an unaltered tone when the pedal is not engaged. A true bypass switch has the ability perform a true bypass of the internal hardware circuit of the pedal, meaning the signal goes straight from the IN to the OUT.
Full Metal Shell
5 bands of EQ – 62.5Hz, 125Hz, 500Hz, 1kHz, 4kHz
18dB of attenuation or gain
True Bypass 3DPT Switch
Power Supply: 9V DC (Negative Centre) – (Not Included)
Working Current: 40mA
Input Impedance: 1M Ω
Output Impedance: 470k Ω
Input and Output Connectors: 1/4″ jack
Dimensions: L93.5mm x W42mm x H52mm (incl. switch)
1 * User Manual(English)
Takes 9v DC adapter (not included)
This pedal can NOT be powered by batteries. It needs a DC 9V 100ma power supply negative center to power up.
Power supply not included.
Please use a 9V DC power adapter whose polarity is negative center otherwise, the product may not work properly.
- Package List:
1 * Effect Pedal1 * User Manual ( English )
- 1 * Hardcover Box
- 1 * Year warranty through our store
- No Duty or Sales Tax to Canada and USA
- FAST ‘N FREE USA Shipping (typically about 4 days via USPS )
Ships from Canada
*Just to be clear on DUTY, (regardless of any warnings to buyers ) Canada and the USA have a trade agreement in place that allows US citizens to purchase/import up to $800 dollars per purchase in to the United States from Canada with NO Duty at all, on OUR site NO State taxes either.
